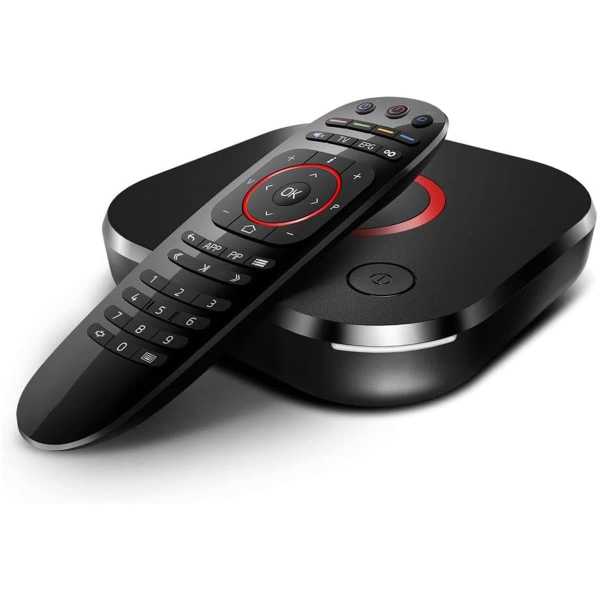

MAG 544w3 UHD 4K Linux IP Receiver (WiFi, LAN, HDMI, USB, Dolby Digital+, IP Media Player, Black)

The MAG 544w3 TVIP set-top box is a powerful solution for TVIP services based on the Linux operating system with WiFi integrated. With its Amlogic S905Y4 chipset and quad-core ARM Cortex-A35 processor, it offers improved performance compared to the previous generation of set-top boxes. The MAG 544w3 supports 4K videos and all popular codecs, including HEVC.

Features
- 4K UHD Resolution
- 1GB DDR3 & 4GB eMMC
- Quad-Core ARM Cortex-A35 Processor
- Dolby Digital Plus Audio
- Infomir API Integration
- WiFi

Attention!
4K or HDR playback is only possible with compatible media and TV sets. No IP transmitters are pre-installed!

Infomir's API allows you to quickly implement the model in any video service that currently uses MAG devices. The device supports eight-channel Dolby Digital PlusTM audio, is equipped with two USB 2.0 ports, and can be connected to the Internet via an Ethernet port.

Technical Info
- Linux 4.9
- Chipset: Amlogic S905Y4-B
- Processor: ARM Cortex-A35 quad-core, 2,000MHz
- Performance: 16 500 DMIPS
- RAM: 1GB DDR3
- Storage: 4GB eMMC
- GPU: ARM G31 MP2, 850MHz. Supports OpenGL ES 3.2, Vulkan 1.1, and OpenCL 2.0
- Audio encoding MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus
- Video Mode PAL, NTSC, 576p, 720p,1080p, 1080i, 2160p
- MPEG1/2 MPHL, MPEG4 part 2 (ASP), AV1, MJPEG streams, H.265 Main/Main 10 L5.1 High 2160p 60 fps (optional),H.264 AVC High L5.1 2160p 30 fps, XviD, 3D video support
- Video containers TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
- Image format JPEG, PNG, BMP, RAW
- Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext Subtitles, WebVtt, Subtitles
- WiFi-Modul: 2T2R ac (integrated)
- Playlist format M3U, M3U8, PLS, CUE

Connections & Connectivity
1x HDMI 2.1
2x USB 2.0
1x 100 Mbit/s Ethernet
1x DC Connector
- WiFi

Dimension & Weight
- Dimension: 78 x 21 x 120 mm
- Weight: 110g

Delivery
1x MAG 544w3 4K UHD HEVC LAN Linux IP-Receiver, Black
1x User Manual
1x HDMI Cable
1x 5V/2A Power Adapter
1x Remote Control
2x AAA Batteries
