BALTER ERA Silver RFID 2-Wire BUS IP Door Station for 1 Participant 150° Wide-Angle Lens

The ERA door station shows you who is at your door: With ERA you not only speak to your visitor but also see a live image via the camera. The 150° wide-angle camera also shows people standing directly next to or under the camera. The built-in white light LEDs are activated automatically in the dark and show visitors clearly and distinctly even at night. If required, ERA can even replace conventional keys: an RFID card reader is integrated into every door station, with which you can open doors with a handy chip. ERA also works with cables that have already been laid from older door stations and, thanks to flush mounting, can be integrated almost seamlessly into any underground. Installation is child's play: Thanks to the 2-Wire BUS wiring, only a single cable with 2 wires has to be used to send video, audio, power, and data.

Features:
- Door Station for 1 Family
- Hands-Free Function
- Protection Class IP55
- Flush Mounting
- Brushed. Aluminum Plate
- 2-Wire BUS Technology
- Illuminated Name Tag
- IP Quad HD 1080p High-Definition Camera
- Up to 150° Ultra-Wide-Angle Lens

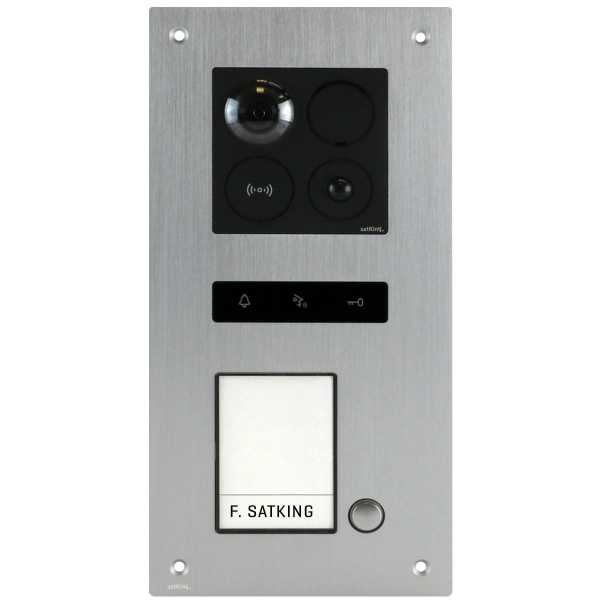

Door Station Made of Aluminum with 1 Bell Button
This high-quality door station made of brushed aluminum impresses with its timelessly elegant design and looks good even after long use. A high-performance 150° wide-angle camera covers a particularly wide field of view in order to reliably depict people who are not directly in front of the camera. Groups are also displayed optimally in this way.

Camera with 150° Ultra-Wide-Angle Lens
Words are often not enough in everyday life. With the video function of the ERA outdoor station, you can get an idea for yourself. The viewing angle of the ultra-wide-angle camera is an enormous 150°. This means that the camera covers almost the entire horizontal and vertical plane, and you can see visitors standing both next to and under the camera. For comparison: The viewing angle of the human eye is only approx. 60°. Even if ERA is installed in a disadvantageous position, e.g. at an angle, gives you a full view of the entrance area. Groups are also displayed optimally in this way.

Day/Night Switching
Thanks to an integrated light/dark sensor, ERA automatically detects the onset of darkness. In this case, it automatically activates its white light LEDs so that ringing visitors can be clearly recognized on the separately available Balter ERA 7" IP monitor. The name tag can also be automatically illuminated at night To protect the environment.

IP over 2-Wire Technology
With the 2-wire technology, the installation of the ERA door station is extremely easy. Since two cables are sufficient to exchange video, audio, and power at the same time, work and costs are already minimized during installation. If ERA replaces an already existing, older door intercom system, its old cables can normally still be used. ERA not only works sustainably but also minimizes the installation costs to a negligible level in this case.

2-wire BUS IP module easily integrates 2-wire indoor and outdoor stations into IP networks, making the devices addressable and thus accessible in the network. In addition, thanks to the IP module, the video door intercom can even be controlled with a smartphone or tablet. This makes it possible to speak to your visitors from anywhere, see them, and open the door.

Surface Made of Aluminum, Elegant Design
ERA's door station is made of high-quality aluminum. This robust and light material ensures that you and your visitors can enjoy ERA's elegant design for a long time to come. Thanks to protection class IP55, ERA defies rain and dust. The timeless and straightforward design harmonizes both with older houses and with new buildings.

Door Opening via RFID
The RFID function makes keys superfluous and allows the front door to be opened quickly and without contact - an authorized chip is simply held at the station. If a card is lost, it is simply blocked. With a conventional lock, the entire locking system would have to be replaced in order to prevent a security gap. Children and senior citizens in particular benefit from the ease of use and high security of RFID technology.

Technical Info:
- Bell Buttons: 1
- Protection Class: IP55
- Material: Aluminum
- Hands-Free Function: Yes
- Image Sensor: IP Quad HD (2K) 1080p 3MP
- Installation: Flush Mounting
- Illuminated Nameplate: Yes
- Support for Max: 64 users
- Microphone and Speaker: Integrated
- Technology: 2-wire BUS, No Polarity
- Day/Night Switching: Automatic
- Connection with CCTV: Support 1 IP Camera Input
- Camera Module: up to 150° Wide-Angle Camera

Dimensions & Power Consumption:
- Weight: 1280g
- Operating Temperature: -20°C to +55°C
- Power Supply: 24V DC, 50Hz / 60Hz
- Power Consumption: 1W (Standby)/5W (Operation)
- Dimensions Front Panel: 140mm (W) x 285mm (H)
- Dimensions Flush-Mounted Box: 126mm (W) x 270mm (H) x 50mm (D)

Delivery:
1x Balter ERA Door Station 1 Participant Silver, 2-Wire BUS Technology (Video/Audio/Power), 150° Ultra-Wide-Angle Camera - ERA-1FR-S01
1x Allen Key
1x Flush-Mounted Box
1x RFID Key
1x User Manual
1x Screw and Dowel Set + Suction Holder
