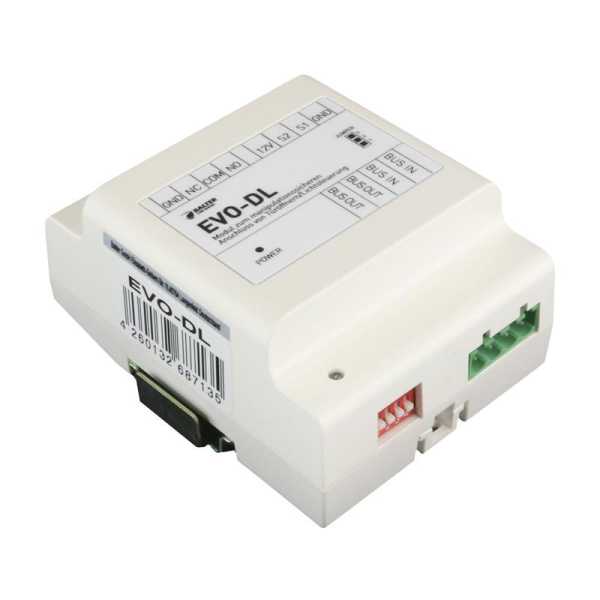

BALTER EVO-DL Tamper-Proof Connection Module for Door Openers and Light Controls

EVO-DL is a module for the tamper-proof connection of door openers/light control.

Features:
- Door opener module
- Main power distribution board
- Can be mounted directly on the DIN rail
- closed design, contact-protected screw connections
- Overload protection through current limitation, auto-recovery
- Protected against short circuit, overload, overvoltage

Connections-1 (via Terminal Blocks)
- GDN: Grounding for the remaining connections
- NC: Connection for NC door opener
- COM: Contact of the door opener relay
- NO: Connection for NO door opener

Connections-2 (via Terminal Blocks)
- 12V: 12V output for the door opener
- S2: Not used
- S1: Exit button
- GDN: grounding

Technical Info:
- Type: EVO-DL

Dimensions:
- Weight: 145g
- Dimensions: 45mm x 35mm x 25mm

Delivery:
1x EVO-DL Module with DIN Rail
2x Screws
2x Dowels
3x Terminal Blocks
1x Instruction Manual
