Combat rising energy costs and campsite fees and give yourself the flexibility to camp off the... more

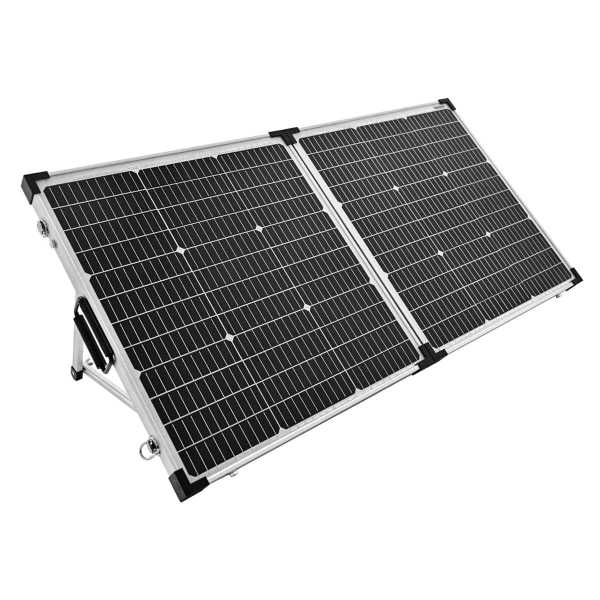

Combat rising energy costs and campsite fees and give yourself the flexibility to camp off the grid for longer with a portable solar panel. The 130-watt rigid panel array consists of two 65-watt monocrystalline panels that fold out into a 130-watt aluminum frame solar panel, with fold-out aluminum legs that can be adjusted to different angles adjust them according to your preferences. The panel comes with a 10A MPPT Bluetooth solar controller that manages input and protects your batteries from overcharging.
Features
- Foldable and Portable Solar Power Solution
- 130W High-Performance Monocrystalline Panels
- Built-in 10A Bluetooth MPPT Solar Controller
- Efficient Energy Capture in all Conditions
- Monitoring via Smartphone App (iOS and Android)
- Versatile Battery Connection Options
What is MPPT?
MPPT (Maximum Power Point Tracking) can increase the charging efficiency and power output of the solar system, especially in low light or cold weather. This improves the efficiency of your panels by up to 30% more than a PWM controller.
Why Monocrystalline Solar Panels
Monocrystalline solar cells consist of individual silicon crystals, which gives them high efficiency. These panels are space-saving and ideal for limited areas as they can harvest more energy from sunlight.
Bluetooth with Solar Function
The attached MPPT controllers use Bluetooth connectivity to allow you to monitor the energy being produced, your battery's state of charge, and the load placed on your battery via an app on your smartphone or tablet. The app is available for any Android or iOS device. This gives you a snapshot view and also a graphical historical view over 60 days of what energy is being produced, stored, and used.
Connections
Connecting to your battery is easy, and the panel offers two connection options for the battery. The 4.5-meter-long solar cable has an Anderson click connector at the end that allows it to be connected either to ring terminal connectors that can remain permanently attached to a battery, or alligator clips. This also means you can use the ring terminals on your main battery and quickly connect the solar system to the battery you choose to charge an additional or the engine battery.
The solar panel folds neatly into a protective cover for storage or transport.
Technical Info (Battery)
- System Voltage: 12V
- Maximum Charging Current: 20A
- MPPT Charging Voltage: <14.5V at 25°C
- Boost Voltage: 14.0 - 14.8V Programmable (Standard: 14.5V at 25°C)
- Compensation Voltage: 14.0 - 15.0V Programmable (Standard: 14.8V at 25°C)
- Float Voltage: 13.0 - 14.5V Programmable (Standard: 13.7V at 25°C)
- Low Voltage Shutdown: 10.8 - 11.8V, SOC1-5 Programmable (Default: 11.2V)
- Low Voltage Restart: 11.4 - 12.8V Programmable
- Overcharge Protection: 15.5V
- Temperature Compensation: -4.17mV/K per Cell (Boost, Compensation), -3.33mV/K per Cell (Float)
- Charging Target Voltage: 10.0 - 17.0V (for Lithium, Programmable)
- Charge Recovery Voltage: 9.2 - 16.8V (for Lithium, Programmable)
- Low Voltage Cutoff: 9.0 - 15.0V (for Lithium, Programmable)
- Low Voltage Reconnection: 9.6 - 16.0V (for Lithium, Programmable)
- 0°C Charging Protection: Yes, No, Slow (Lithium, Standard: Yes)
- Maximum Voltage at the Battery Terminal: 25V
- Battery Type: Gel, AGM, Liquid, Lithium (Default: Gel)
Technical Info (Solar Panel)
- Cell type: Monocrystalline
- Maximum Input Power 150W with a 12.8V Lithium Battery
- Maximum Voltage at the PV Connection 45V
- Twilight Detection Voltage 3.0 ~ 8.0V (Default: 5.0V)
- Day/Night Delay Time 0 ~ 30 Minutes (Programmable, Default: 0 Minutes)
- MPPT Tracking Range (Battery Voltage + 1.0V) ~ Voc*0.9 *
- Maximum Tracking Efficiency >99.9%
- Protection Class: IP65
* Voc means the open circuit voltage of the solar panel.
Technical Info (MPPT Solar Controller)
- Maximum Charge Conversion: 96.5%
- Communication Distance: 10m
- Own Consumption: 8mA
- Ambient Temperature: -35~+60°C
- Ambient Humidity: 0~100% Relative Humidity
- Protection Class: IP67
- Maximum Altitude: 4000m
Dimensions & Weight (Solar Panel)
- Folded: 615 x 590 x 60 mm
- Unfolded: 1183 x 615 x 30 mm
- Weight: 11.8kg
Dimension & Weight (MPPT Solar Controller)
- Dimensions: 85.8 x 81 x 23.1 mm
- Weight: 260g
Delivery
1x FALCON Foldable 130W Solar Panel (made of 2x 65W Monocrystalline Panels) with Adjustable Legs
1x Integrated 20A MPPT Bluetooth Solar Controller (Charge Controller)
1x 4.5 Meter Solar Panel Cable with Anderson Connector
1x Battery Alligator Clip Connectors
1x O-Ring Terminal Cable (Ring Connection)
1x Fuse
1x Carrying Bag
1x User Manual
Features
- Foldable and Portable Solar Power Solution
- 130W High-Performance Monocrystalline Panels
- Built-in 10A Bluetooth MPPT Solar Controller
- Efficient Energy Capture in all Conditions
- Monitoring via Smartphone App (iOS and Android)
- Versatile Battery Connection Options
What is MPPT?
MPPT (Maximum Power Point Tracking) can increase the charging efficiency and power output of the solar system, especially in low light or cold weather. This improves the efficiency of your panels by up to 30% more than a PWM controller.
Why Monocrystalline Solar Panels
Monocrystalline solar cells consist of individual silicon crystals, which gives them high efficiency. These panels are space-saving and ideal for limited areas as they can harvest more energy from sunlight.
Bluetooth with Solar Function
The attached MPPT controllers use Bluetooth connectivity to allow you to monitor the energy being produced, your battery's state of charge, and the load placed on your battery via an app on your smartphone or tablet. The app is available for any Android or iOS device. This gives you a snapshot view and also a graphical historical view over 60 days of what energy is being produced, stored, and used.
Connections
Connecting to your battery is easy, and the panel offers two connection options for the battery. The 4.5-meter-long solar cable has an Anderson click connector at the end that allows it to be connected either to ring terminal connectors that can remain permanently attached to a battery, or alligator clips. This also means you can use the ring terminals on your main battery and quickly connect the solar system to the battery you choose to charge an additional or the engine battery.
The solar panel folds neatly into a protective cover for storage or transport.
Technical Info (Battery)
- System Voltage: 12V
- Maximum Charging Current: 20A
- MPPT Charging Voltage: <14.5V at 25°C
- Boost Voltage: 14.0 - 14.8V Programmable (Standard: 14.5V at 25°C)
- Compensation Voltage: 14.0 - 15.0V Programmable (Standard: 14.8V at 25°C)
- Float Voltage: 13.0 - 14.5V Programmable (Standard: 13.7V at 25°C)
- Low Voltage Shutdown: 10.8 - 11.8V, SOC1-5 Programmable (Default: 11.2V)
- Low Voltage Restart: 11.4 - 12.8V Programmable
- Overcharge Protection: 15.5V
- Temperature Compensation: -4.17mV/K per Cell (Boost, Compensation), -3.33mV/K per Cell (Float)
- Charging Target Voltage: 10.0 - 17.0V (for Lithium, Programmable)
- Charge Recovery Voltage: 9.2 - 16.8V (for Lithium, Programmable)
- Low Voltage Cutoff: 9.0 - 15.0V (for Lithium, Programmable)
- Low Voltage Reconnection: 9.6 - 16.0V (for Lithium, Programmable)
- 0°C Charging Protection: Yes, No, Slow (Lithium, Standard: Yes)
- Maximum Voltage at the Battery Terminal: 25V
- Battery Type: Gel, AGM, Liquid, Lithium (Default: Gel)
Technical Info (Solar Panel)
- Cell type: Monocrystalline
- Maximum Input Power 150W with a 12.8V Lithium Battery
- Maximum Voltage at the PV Connection 45V
- Twilight Detection Voltage 3.0 ~ 8.0V (Default: 5.0V)
- Day/Night Delay Time 0 ~ 30 Minutes (Programmable, Default: 0 Minutes)
- MPPT Tracking Range (Battery Voltage + 1.0V) ~ Voc*0.9 *
- Maximum Tracking Efficiency >99.9%
- Protection Class: IP65
* Voc means the open circuit voltage of the solar panel.
Technical Info (MPPT Solar Controller)
- Maximum Charge Conversion: 96.5%
- Communication Distance: 10m
- Own Consumption: 8mA
- Ambient Temperature: -35~+60°C
- Ambient Humidity: 0~100% Relative Humidity
- Protection Class: IP67
- Maximum Altitude: 4000m
Dimensions & Weight (Solar Panel)
- Folded: 615 x 590 x 60 mm
- Unfolded: 1183 x 615 x 30 mm
- Weight: 11.8kg
Dimension & Weight (MPPT Solar Controller)
- Dimensions: 85.8 x 81 x 23.1 mm
- Weight: 260g
Delivery
1x FALCON Foldable 130W Solar Panel (made of 2x 65W Monocrystalline Panels) with Adjustable Legs
1x Integrated 20A MPPT Bluetooth Solar Controller (Charge Controller)
1x 4.5 Meter Solar Panel Cable with Anderson Connector
1x Battery Alligator Clip Connectors
1x O-Ring Terminal Cable (Ring Connection)
1x Fuse
1x Carrying Bag
1x User Manual
