UR Fog Modular 400 Ajax Ready Security Fog System (2 Ajax Relays, 400 m3 Fog Volume, White)

The Modular 400 Ajax Ready security fog system is a powerful and versatile solution for generating security fog in rooms with a volume of up to 400 m³. Easy integration with your Ajax alarm system via the included and built-in Ajax relays. With its automatic or manual trigger function, it offers effective protection against unwanted intrusion or theft. Using White Out safety fog fluid, the system produces up to 400m³ of fog in just 46 seconds, and up to 1275m³ of fog can be produced per fill.

Features
- Ajax Ready Security Fog System
- Rapid formation of Fog: 46 seconds for 400 m³
- Adjustable Operating Time: 1-46 seconds adjustable
- Reliable Activation: Wired Digital Inputs
- Versatile installation Options: vertical or horizontal

Flexibility for Individual Needs
Operating the security fog system is easy and customizable as the operating time can be continuously adjusted between 1 and 46 seconds via a push button. The system has a rapid heat-up time of less than an hour and then operates at an average power consumption of 48W, ensuring an efficient and cost-effective operation.

Efficient use without Long Waiting Times
The system is activated via wired digital inputs, which enable reliable and precise control. To ensure continuous function in the event of a power failure, it is possible to connect a maintenance-free lead-acid battery with a capacity of 12 V DC / 2 Ah, which allows a bridging time of up to one hour.

Precise Control through Digital Inputs
The Modular 400 security fog system offers a variety of inputs and outputs, including inputs for arming and the start of fog output, as well as outputs for the ready state, arming and indicating faults, or an empty refill bag with 750 ml of fog liquid. A 12 V DC output voltage with 300 mA is available for external peripheral devices.

Continuous Protection in Case of Power Failure

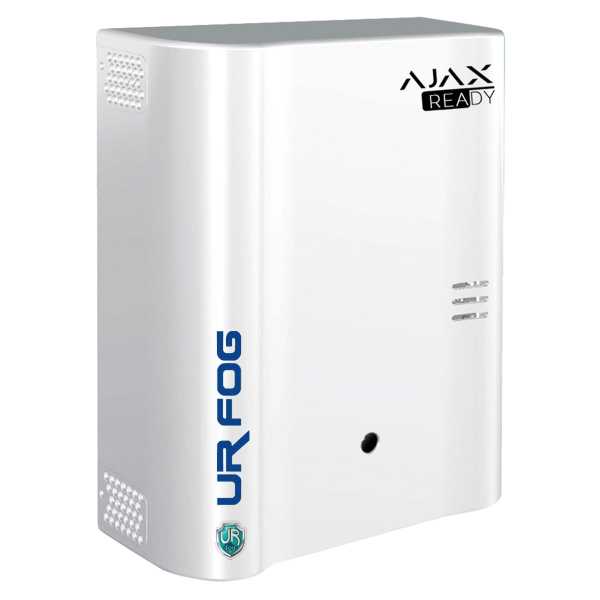

The robust design of the security fog system includes a housing base made of galvanized sheet steel in gray and a housing top made of white plastic. The dimensions of 300x390x130 mm enable flexible installation both vertically and horizontally.

Technical Info
- Ajax Ready Fog Generator
- Generates 400 m3 of Fog with no vision in 60"
- 2 Ajax Relays (to switch on and trigger) integrated into the machine
- Optical LED signaling
- 12VDC 300mA output for external peripherals
- Possibility of battery support (12VDC 2.0Ah)
- Adjustable trigger time up to 46 s
- Total recording time 1.5 min
- Total shot volume 850 m3
- Green Power technology
- Up to 400 m3 without sight
- Very low power consumption
- Leaves no traces after the shot

Dimension & Weight
- Dimensions: 300x390x130mm
- Weight: 9.5kg

Delivery
1x UR Fog Protective Fog System Modular 400 m³ Ajax Ready, White
1x Assembly Set
1x Power Cord
1x User Manual
