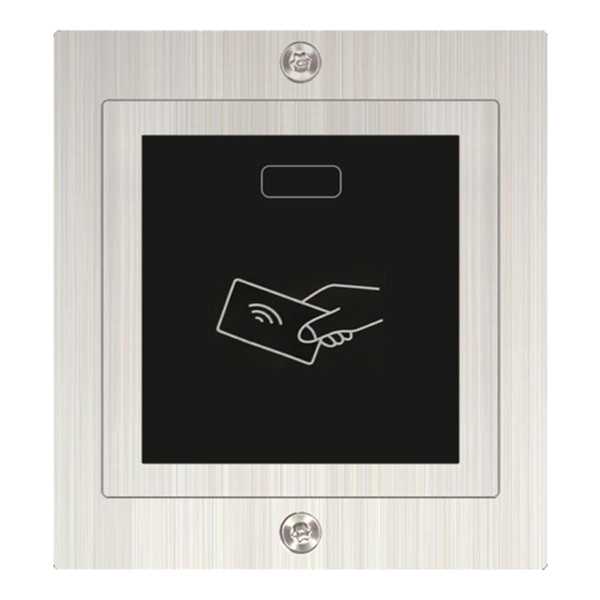

Anthell Electronics Flush Mount RFID Access Controller (AE-601DT2, 2 Zones, IP65, 12V)

Tired of standing in front of locked doors without a key? Then simply open your door with your RFID transponder!

The AE-601DT2 is a 2-ZONE access controller with an integrated RFID reader for flush mounting. Thanks to the 2-zone function, two doors can be controlled with one controller.

Features
- Protection Class IP65
- Flush Mounting
- 1010 RFID Users
- Two Potential-Free Relay Outputs
- Search Speed < 1 Second
- Users remain stored in the event of a power failure (EPROM)
- Automated opening and closing of gates, locks, and most automated systems

Equipped with the latest microprocessor technology, to control the opening and closing functions of automatic gates, electric locks, and most systems that require a short (timed) impulse.

Thanks to the solid and splash-proof stainless steel front (2mm), the AE-601DT2 can be used indoors or outdoors! No additional weather protection roof is required! (Protection class IP65).

The AE-601DT2 Supports up to 1010 Users
Programming is done using the included remote control. All stored data and settings are stored on the internal microprocessor and are retained in the event of a power failure.

Thanks to the built-in potential-free relay, the use of the AE-601DT2 is unlimited. Both built-in relays can be used as a pulse mode, e.g. B. for electric door openers.

Security
In combination with the remote security module SRM, manipulation from the outside is impossible! This makes the outdoor station the perfect security device for your home and the most important part of your security system. (The SRM can be ordered as an option).

Technical Info
- Installation: Flush-Mounted
- Material: Stainless Steel(2mm) + Plastic
- Finish: Brushed
- User Capacity (RFID): 1000 Transponders, 10 Transponders
- Memory: EPROM (Non-Volatile)
- Transponder Type: EM or EM Compatible
- Frequency: 125kHz
- Reading Distance: 1 - 4 cm (Depending on Transponder Variant)
- Operating Voltage: 12V-24V/DC ± 10%, 12V-18V AC ± 10%
- Power Saving Mode: < 30mA (at 12V DC)
- Standby Mode: < 45mA (at 12V DC)
- Electrical Connections: 1x Connection Contact for Power
- Relay: 2 Potential-Free Relays (NO, NC, COM)
- Adjustable Opening Time: 01-99 Seconds
- E-Opener Switch-Through Load: 2 Amps Maximum
- Operating Temperature: -20°C to +60°C
- Operating Humidity: < 95%RH
- Protection Class: IP65 (Splashproof)
- Weight: 500g
- Dimension (WxHxD): 100 x 110 x 38 mm

Delivery
1x Anthell Electronics RFID Access Controller, AE-601DT2
1x Programming Remote Control
1x Flush-Mounted Box
1x Fastening Material and Tool
1x User Manual
