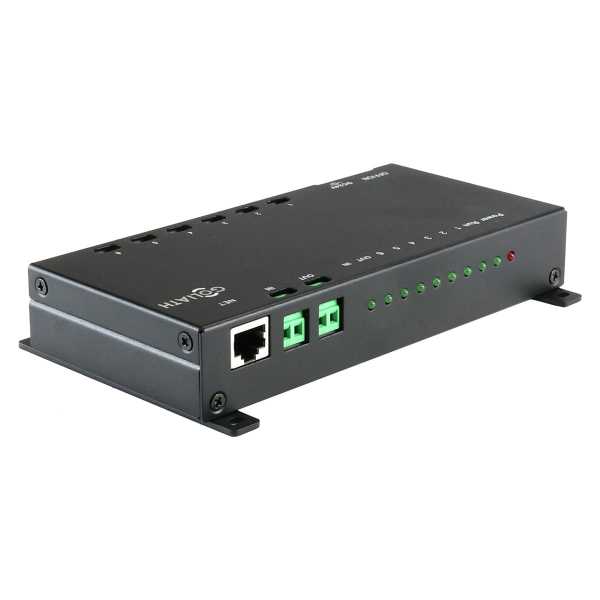

GOLIATH 2-Wire to IP/LAN Converter Module (10/100Mbps Ethernet, Black)

The Goliath 2-wire BUS IP module easily integrates 2-wire hybrid indoor hybrid door stations into IP networks and makes the devices addressable and therefore accessible in the network. The individual devices are either connected directly to the IP module via 2 wires. Power supply and data transmission of video and audio takes place between the device and the IP module via 2 wires.

Features
- 2-wire converter to IP
- 10/100Mbps Ethernet
- Wall mounting
- Can be cascaded over two wires

This product provides six pairs of 2-wire ports, supporting 30 levels of product cascading up to 180 devices. It solves the apartment digitalization problem. When 2-Wire VTH connects to the network via this product, it can achieve video talk, unlock, monitor, etc.

Only the IP module is connected to the router via a LAN cable and thus forms the center of the entire wiring. Up to 6 devices can be connected. All components, the indoor and outdoor stations, of the door intercom systems are connected to each other via this. There are 4 input channels available for feeding, and it is possible to connect several devices via one channel.

There are hardly any limits to the expandability; additional IP cameras, WiFi cameras, gas detectors, smoke detectors, alarm modules, and door sensors can be integrated. Furthermore, additional indoor and outdoor stations can also be added in later expansion. This means you have a perfectly coordinated system for monitoring your home. The IP module can be cascaded; only one IP module needs to be connected to the network.

Technical Info
- Model: VTNS1060A-2
- Input: 1-ch (ethernet, 2-Wire port alternative)
- Output: 1-ch
- VTH Port: 6-ch
- Power: 24V
- Power Consumption: Rated 80w
- Work Temperature: -10°C - +55°C

Dimension & Weight
- Dimensions (LxWxH): 178 x 84,5 x 30 mm
- Dimensions (LxWxH): 178 x 106 x 32 mm (With bracket)
- Weight: 494g

Connections
1x Power Switch
1x DC-IN (24V)
6x Indicator
1x Upper Port IN
1x Lower Port OUT
1x Network Port
6x VTH Port

Delivery
1x GOLIATH 2-Wire to IP/LAN Converter Module
1x User Manuel
