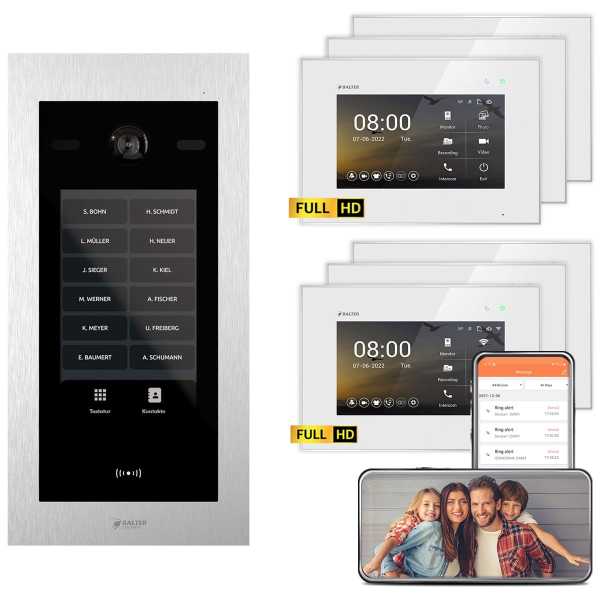

Balter EVO HD Touch Video Door Intercom Single & Multi-Family Homes

See immediately who is at the door: The Balter EVO HD Touch 7 door intercom shows you every visitor who rings the bell. With the help of the door intercom monitor, you can see every visitor standing at the door live, so you always know who is waiting for you at the door... and whether it is even worth going to the door.

Features
- Door Station for up to 1000 Families
- High-resolution full HD Camera
- 175° ultra-wide-angle lens
- Electronic door opener and automatic door
- 7" IPS TFT full-touch display for operation directly on the screen (door station)
- Up to 2 door openers can be controlled
- 2-wire IP-BUS technology (video/audio/power)
- Access control: Virtual code module & RFID reader
- Hands-free function
- MicroSD slot up to 128GB (door station)
- Protection class IP44 (door station)
- 7" HD or 7" WiFi HD video station (monitor)*
- Floor bell/gong can be connected (monitor)
- WiFi function & app control (monitor)*
- Open door with QR code on smartphone*
- MicroSD slot up to 32GB (monitor)
- Plexiglass front panel (Monitor)
- Intercom, door opener (Monitor)
- IP cameras support*

* Varies depending on the variant

A picture is worth a thousand words. This is why the Balter EVO HD Touch 7 door intercom shows you a live image of the visitors so that you immediately know who is at the door. The 175-degree viewing angle of the wide-angle camera installed in the outdoor station covers almost the entire horizontal. This means you can see visitors both next to and below the camera. Even if several people are at the door, you can still see everyone clearly. The full HD camera with a 175° ultra-wide angle offers a razor-sharp image and night vision thanks to integrated infrared lighting. Installing the Balter EVO HD Touch 7 door station is relatively simple: There is a 2-wire BUS wiring, where you only have a single cable with 2 wires, over which video & audio data and power run at the end.

RFID & Code Module
The sensor offers extremely effective access control through the intelligent combination of RFID technology and a virtual code module. Users can easily access the door from outside using an RFID chip, QR code, or a local private password, which offers a convenient and secure solution for opening the door from outside.

2-Wire BUS Technology
The built-in 2-wire BUS technology ensures easy and quick installation. Two wires are enough to transmit video & audio data and power at the same time. This way, you minimize the cost and effort of installing the door station.

Intercom Function
With up to 3 additional monitors (1x master + 3x extension), you can enjoy maximum convenience! Install an additional monitor in your favorite room to simply open the door from there and save yourself the trip to the hallway! You also have the convenient intercom function at your disposal, with which you can easily communicate between two monitors.

EVO HD 7-inch Touchscreen Monitor*
This set offers maximum convenience with its ultra-slim 7-inch touchscreen monitor and intuitive user interface. With just a few taps you can see and communicate with visitors, as well as open the door. The 2-wire BUS technology makes installation easy, while the microSD card expands the memory for up to 1000 photos and 200 videos. Up to 4 monitors can be connected per family, and the monitor fits into any living space thanks to its neutral design.

EVO HD WiFi 7-inch Touchscreen Monitor*
With the WiFi monitor and Balter EVO-2 app support, you get the most out of your video door intercom. You can open the door from your favorite room and benefit from the intercom function with 2 or more monitors. Setting up the video intercom is quick thanks to QR code scanning. With smartphone control, you can see who is at your door and talk to that person at any time. Another function is that you can easily open your door with a QR code on your smartphone, while the microSD card expands the memory for up to 1000 photos and 200 videos. In addition, you can optionally connect IP cameras (Balter IPX).

Technical Info (Door Station)
- Bell buttons: up to 1,000 families
- Resolution: (600x1024) IPS TFT
- Installation: Flush-mounted
- Access control: Virtual code module & RFID reader
- Material: Brushed aluminum plate
- Lighting: Infrared
- Day-night switching: Automatic / Always on / Off
- Camera module: 175° ultra-wide-angle camera, high resolution
- Technology: 2-wire IP-BUS, no polarity
- Microphone and loudspeaker: Integrated
- Operating temperature: -20° C to +55° C
- Power consumption: 0.8W (standby) / 4.2W
- Hands-free function: Yes
- Protection class: IP44
- Tamper contact: Yes
- Power supply: 28-32 V DC
- Screen type: Capacitive plexiglass touchscreen
- Dimensions Flush-mounted box (W x H x D): 138 x 307 x 45 mm
- Front panel dimensions (W x H): 158 x 319 mm
- Weight (without flush-mounted box): 1240 g
- Weight (with flush-mounted box): 1980 g

Technical Info (EVO 7" Video Station)
- Resolution: 1024 (H) x 768 (V) pixels
- Touchscreen technology: Capacitive
- Mounting type: Surface mounting
- Screen size: 7-inch color TFT
- Screen type: Touchscreen
- Wiring: 2-wire BUS
- Material: Plexiglass
- Screen menu: Yes
- Intercom function: Yes
- microSD cards: Up to 32 GB
- Functions: View photos of missed visitors, listen to visitor messages, record videos, support a floor bell
- Power consumption (without WiFi): 0.45W (standby)/9W (operation)*
- Power consumption (with WiFi): 0.45W (standby)/12W (operation)*
- Dimensions (WxHxD): 222 x 154 x 15mm
- Power supply: 22 - 32V DC
- Weight: 645g

* Varies depending on the variant

Technical Info (EVO HD Main Power Distributor)
- Installation of DIN Rail Mounting
- Input power: AC 100V-240V, 0.5A, 50Hz/60Hz
- Output power: 32V DC (4A)
- Dimensions: 140mm (W) x 97.5mm (H) x 58.5mm (D)

Delivery
1x Balter EVO HD Touch 7 Video Door Station, black
1x Balter EVO HD Main Power Distributor (BUS-C5001)
1x Allen Key, Screw, and Dowel Set
1x Operating Instructions (QR Code)
1x Flush-Mounted Box
- Balter EVO HD 7-inch WiFi Video Station, black*
- Balter EVO HD 7-inch Video Station, black*

* The scope of delivery depends on the variant selected.
