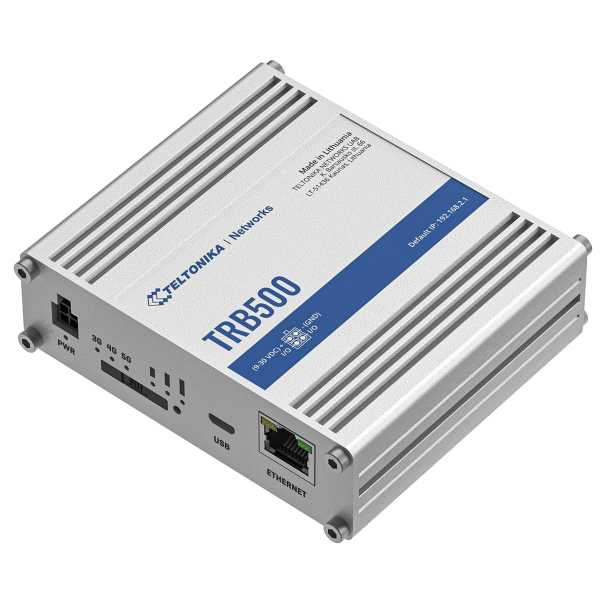

The Teltonika TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission... more
The Teltonika TRB500 is a compact, energy-efficient 5G gateway for ultra-fast data transmission with extremely low latency. Backward compatibility with 4G and 3G networks enables future-proof solution infrastructures even in areas where 5G is unavailable. With LTE Cat 6 and Gigabit Ethernet, it offers reliable and secure Internet connectivity.
Features
- LTE Cat 20 up to 2.1/3.3Gbps
- Gigabit Ethernet connection
- Compact and robust design
- Linux environment for individual customization
Reliable and flexible IoT connectivity
The Teltonika offers a stable and secure connection for industrial IoT applications that require continuous and resilient network connectivity. A powerful LTE Cat 20 module enables download speeds of up to 2.1/3.3Gbps and upload speeds of up to 200 Mbps. The Gigabit Ethernet port provides additional flexibility for local network connections.
In addition to its network functionality, it also supports various industrial protocols such as Modbus and DNP3, making it a versatile solution for integration into existing systems.
Teltonika TRB Series vs RUT Series
Both Teltonika's TRB and RUT series are robust industrial cellular routers used for a variety of IoT applications.
The TRB series is primarily designed as compact and cost-effective IoT gateways. These devices are ideal for smaller IoT projects where a simple and reliable connection to a network is needed. While some models offer optional WLAN modules, WLAN is usually not integrated as standard. Its easy configuration and small footprint characterize the TRB series.
In contrast, the RUT series is a more comprehensive line of industrial routers that offers a variety of interfaces and features, including an integrated Wi-Fi module. The RUT series is suitable for a wider range of applications, from small IoT projects to large industrial networks that require a robust and reliable connection. These routers offer higher performance, more flexibility in configuration and a larger number of interfaces than the TRB series.
Mobile
- Module: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
- Status: IMSI, ICCID, operator, network type, band, signal strength (RSSI, SINR, RSRP, RSRQ), EC/IO, RSCP
- SMS: Send/read via HTTP POST/GET, SMS autoreply, SMS to HTTP, scheduled SMS
- USSD: Send and read USSD messages
- Lists: Black/white list of operators
- Band management: Band lock and status display
- SIM management: SIM PIN code management
- APN: Auto APN
- Bridge/Passthrough: Pass mobile IP address to device in LAN
Ethernet
- 1x ETH port (10/100/1000 Mbps), Auto MDI/MDIX
Network
- Routing: Static routing
- Protocols: IPv4, IPv6, TCP, UDP, DNS, HTTP, HTTPS, FTP, SSH, Telnet, SNMP, MQTT and much more.
- Firewall: Port forwarding, traffic rules, user-defined rules, TTL target customization
- DDNS: Supports up to 25 network providers
- DNS over HTTPS: Secure DNS over HTTPS
- Backup: Automatic failover (mobile, VRRP, wired)
- Monitoring: Real-time monitoring, signal diagrams, traffic history
Security
- Authentication: Pre-shared key, X.509 certificates, TACACS+, RADIUS
- Firewall: Pre-configured rules, CLI, DMZ, NAT, NAT-T
- Attack protection: DDOS and port scan protection
- VLAN: Port and tag-based separation
- Web filter: Black/whitelist for website control
VPN
- OpenVPN: Multiple clients and one server, 27 encryption methods
- IPsec: XFRM, IKEv1, IKEv2, 14 encryption methods
- GRE: GRE tunnel, GRE over IPsec
- PPTP, L2TP: Client/Server support, L2TPv3, L2TP over IPsec
- Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc: Support for VPN tunnels and encryption
MODBUS
- Modes: Server, Client, TCP
- Registers: Custom registers, file operations
- Data formats: 8-bit/16-bit/32-bit INT, UINT, DCBA, HEX, ASCII
Data to Server
- Protocols: HTTP(S), MQTT, Azure MQTT
- Data transfer: Parameter extraction from various sources, LUA scripts
MQTT Gateway
- Modbus MQTT: Sending commands and receiving data via MQTT
Monitoring & Management
- WEB UI: HTTP/HTTPS, configuration, FW update, event log
- FOTA, SSH, SMS, TR-069, MQTT, SNMP: remote management, notifications
- JSON-RPC
- RMS: Teltonika remote management system
IoT Platforms
- ThingWorx, Cumulocity, Azure IoT Hub: monitoring WAN, IP, carrier, signal strength, reboot, and FW updates
System Properties
- CPU: Single core ARM Cortex A7, 1.5 GHz
- RAM: 256 MB (128 MB available for user)
- Flash memory: 512 MB (200 MB available for user)
Firmware/Configuration
- WEB UI: FW update, configuration profiles, backup
- FOTA: FW update via RMS for multiple devices
- Reset: Factory settings including IP, PIN, user data
Firmware Customization
- Operating system: RutOS (OpenWrt Linux based)
- Development tools: SDK, own firmware customizable
- Package manager: Installation of additional software
Input/Output
- Input: 2x digital input divided (0-6 V)
- Output: 2x digital output divided (max. 30 V, 300 mA)
- Events: Triggered by email, RMS, SMS
Power
- Connection: 4-pin DC jack
- Input: 9-30 VDC, reverse polarity protection
- PoE (passive): Power supply via LAN1 (9-30 VDC)
- Surge protection +/-1 kV 50 µs max
- Power consumption: <3 W, Max: <6 W
Interfaces
- Ethernet: 1 x RJ45 port, 10/100/1000 Mbps
- LEDs: Connection and status LEDs
- SIM: 1x Mini SIM (2FF)
- USB: 1 x Virtual network interface via Micro USB
- Antennas: 4x SMA for cellular
- Reset: Reboot, factory reset
Specification
- Housing: Aluminum
- Dimensions: 100 x 30 x 93.4 mm
- Weight: 241 g
- Mounting: DIN rail, wall mounting
Operating Environment
- Temperature: -40 °C to 75 °C
- Humidity: 10%-90%, non-condensing
- Protection class: IP30
* All specific technical data can be found here.
Delivery
1x Teltonika TRB500 LTE Gateway
1x 9W Power Supply
4x Mobile Antenna (Swivel, SMA Connector-Male)
1x Micro USB Cable (0.8 m)
1x LAN Cable
1x SIM Adapter Kit
1x Quick Start Guide (QSG)
