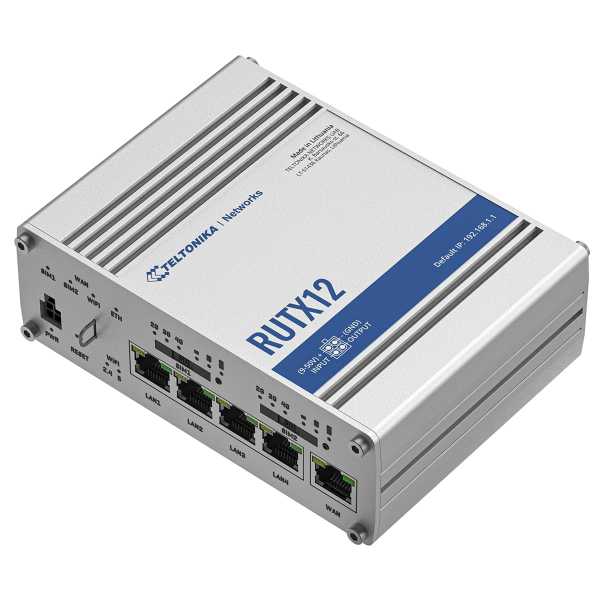

Teltonika RUTX12 4G Dual LTE and SIM IoT WiFi Router (4G/3G LTE CAT 6, Ethernet, Bluetooth)

The RUTX12 is a powerful industrial router specifically designed for critical applications. Two LTE Cat 6 modems and versatile connection options ensure a stable and fast Internet connection even in demanding environments. Thanks to failover and load-balancing functions, this router is ideal for applications where an uninterrupted connection is crucial.

Features
- Dual LTE Cat 6 up to 600 Mbps
- Gigabit Ethernet connection (10/100/1000 Mbps)
- WLAN & Bluetooth
- Linux environment for individual customization

The RUTX12 offers dual LTE Cat 6 connections, meaning it can simultaneously use two LTE cellular connections. This enables a reliable, redundant connection and ensures that data traffic is automatically redirected to the more stable connection if one of the connections fails.

In addition, the router offers a comprehensive range of security features such as VPN support (including OpenVPN, WireGuard, and IPsec), firewall rules, and advanced attack prevention to ensure the highest level of security for networks. Thanks to its compact, robust design and versatile mounting options, the RUTX12 can be used in demanding industrial environments, be it for IoT applications, surveillance systems, or mission-critical network requirements.

Teltonika TRB Series vs RUT Series
Both Teltonika's TRB and RUT series are robust industrial cellular routers used for a wide range of IoT applications.

The TRB series is primarily designed as compact and cost-effective IoT gateways. These devices are ideal for smaller IoT projects where a simple and reliable connection to a network is needed. While some models offer optional WLAN modules, WLAN is usually not integrated as standard. The TRB series is characterized by its easy configuration and small footprint.

In contrast, the RUT series is a more comprehensive line of industrial routers that offers a variety of interfaces and features, including an integrated WiFi module. The RUT series is suitable for a wider range of applications, from small IoT projects to large industrial networks that require a robust and reliable connection. These routers offer higher performance, more flexibility in configuration, and a larger number of interfaces than the TRB series.

Mobile
- 2x 4G LTE Cat 6: Up to 300 Mbps download / 50 Mbps upload; 3G up to 42 Mbps DL / 5.76 Mbps UL
- 3GPP Release: Release 12
- Status: IMSI, ICCID, operator, signal strength, CA indicator, bandwidth, received/sent data volume, cell ID, network type, etc.
- SMS: Status, configuration, send/read via HTTP POST/GET, email-to-SMS, SMS-to-email, autoreply, SMPP
- USSD: Supports USSD messages
- Black/White List: Operator blacklist
- Multiple PDN: Multiple PDN support
- Band Management: Band-Lock, band status display
- SIM Idle Protection: Unused SIM remains in idle mode
- SIM PIN Management: PIN settings and management
- APN: Auto-APN
- Bridge: Direct connection between mobile ISP and LAN
- Passthrough: Router transmits mobile WAN IP to LAN device

Wireless
- Wi-Fi Mode: 802.11b/g/n/ac (Wi-Fi 5), up to 867 Mbps, MU-MIMO, 802.11r Fast Transition
- Wi-Fi Security: WPA2-Enterprise, WPA3-SAE, WPA-PSK, OWE, AES-CCMP, EAP-TLS, PMF
- SSID/ESSID: Stealth mode
- Wi-Fi Users: Up to 150 simultaneous connections
- Wireless Features: Mesh, Fast Roaming, BSS Management, Radio Resource Measurement
- MAC Filter: White/Blacklist
- QR Code Generator: Automatic network access by scanning the code

Bluetooth
- Bluetooth 4.0: Low Energy for short-range communication

Ethernet
- WAN: 1 x WAN port 10/100/1000 Mbps, supports IEEE 802.3, 802.3u, 802.3az, Auto MDI/MDIX - LAN: 4 x LAN ports 10/100/1000 Mbps, supports IEEE 802.3, 802.3u, 802.3az, Auto MDI/MDIX

Network
- Routing: Static and dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
- Protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSH, DHCP, Telnet, SNMP, MQTT, WOL, VXLAN
- VoIP: H.323 and SIP NAT helper for VoIP packets
- Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for checking
- Firewall: Port forwarding, traffic rules, user-defined rules, TTL adjustment
- Ports Management: Status display, activation/deactivation, speed adjustment
- Network topology: Visual representation of connections between devices
- Hotspot: Captive portal, Radius server, SMS authentication, SSO, Walled Garden, user-defined Themes
- DHCP: Static/dynamic IP assignment, DHCP relay, MAC wildcards
- QoS: Prioritization by source/destination, service, protocol, port, WMM, 802.11e
- DDNS: Supports over 25 DDNS providers
- DNS-over-HTTPS: Secure DNS over HTTPS proxy
- Backup: Wi-Fi WAN, cellular, VRRP, wired options as automatic failover
- Load Balancing: Distribute Internet traffic across multiple WAN connections
- SSHFS: Mount remote file system via SSH protocol
- VRF: Support for Virtual Routing and Forwarding (VRF)
- Traffic Management: Real-time monitoring, signal graphs, usage history

Security
- 802.1x: Port-based network access control
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS authentication, IP and login blocks, time-based blocks, password generator
- Firewall: Pre-configured rules can be activated via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T
- Attack protection: DDoS protection (SYN flood, SSH, HTTP/HTTPS attacks), port scan protection
- VLAN: Port and tag-based VLAN separation
- Mobile Quota Control: Data limit, warnings, scheduling
- Web filter: Blacklist/whitelist for websites
- Access control: Flexible access to SSH, web interface, CLI, Telnet
- SSL certificates: Let's Encrypt support

VPN
- OpenVPN: Multiple clients and servers, 27 encryption methods
- IPsec: XFRM, IKEv1, IKEv2, 14 encryption methods (AES, 3DES, GCM, etc.)
- GRE: GRE tunnel, GRE over IPsec
- PPTP, L2TP: Concurrent client/server instances, L2TP over IPsec
- Stunnel: TLS encryption for existing clients/servers
- DMVPN: Scalable IPsec VPNs, support for phase 2/3
- WireGuard: Client and server support
- ZeroTier & Tailscale: Support for ZeroTier and Tailscale VPNs
- Tinc: Encryption and authentication in tunnels

Protocols & Gateways
- MODBUS: Client/Server, TCP/USB, user-defined registers, 8- to 32-bit formats
- OPC UA: Client/Server, TCP
- DNP3 & DLMS: Station, Outstation; DLMS for meter data

Data & API
- Protocols: HTTP(S), MQTT, Azure MQTT, Kinesis
- MQTT Gateway: Communication between MODBUS server and MQTT broker
- API: Web API (beta) for retrieving/modifying data

Monitoring & Management
- WEB UI: HTTP/HTTPS, status, configuration, event logs, FW updates
- FOTA: Firmware updates from server
- SSH: Version 1 & 2
- SMS & Calls: SMS configuration, status, remote control via SMS/call
- TR-069: Support for OpenACS, EasyCwmp, and other platforms
- SNMP: SNMP (v1, v2, v3), brute force protection
- RMS: Teltonika Remote Management System

IoT Platforms
- ThingWorx, Cumulocity, Azure IoT Hub: Monitoring of WAN, IP, network operator, signal strength, reboot, and FW updates

System Properties
- CPU: Quad-core ARM Cortex A7, 717 MHz
- RAM: 256 MB DDR3
- Flash memory: 256 MB SPI

Firmware/Configuration
- WEB UI: FW update, configuration profiles, backup
- FOTA: FW update via RMS for multiple devices
- Reset: Factory settings including IP, PIN, user data

Firmware Customization
- Operating system: RutOS (OpenWrt Linux based)
- Development tools: SDK, own firmware customizable
- Package manager: Installation of additional software

Location Tracking
- GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
- Coordinates: GNSS coordinates via WebUI, SMS, TAVL, RMS
- NMEA: NMEA 0183
- NTRIP: NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
- Server software: Supported server software TAVL, RMS
- Geofencing: Configurable multiple geofence zones

USB
- Data rate: USB 2.0
- Applications: Samba share, USB to serial
- External devices: External hard drive, flash drive, modem, printer, USB to serial adapter
- Storage formats: FAT, FAT32, exFAT, NTFS (reading), ext2, ext3, ext4

Input/Output
- Input: 1x digital input (0-30 V)
- Output: 1x digital output (max. 30 V, 300 mA)
- Events: Triggered by email, RMS, SMS

Power
- Connection: 4-pin DC socket
- Input: 9-50 VDC, reverse polarity protection
- PoE (passive): Power supply via LAN1 (9-50 VDC)
- Power consumption: < 4 W standby, < 22 W Max

Interfaces
- Ethernet: 5x RJ45 ports, 10/100/1000 Mbps
- LEDs: Link and status LEDs
- SIM: 2x Mini SIM (2FF), 1.8 V/3 V, external SIM holder
- Antennas: 4x SMA for LTE, 2x RP-SMA for Wi-Fi, 1x RP-SMA for Bluetooth, 1x SMA for GNNS
- Reset: Reboot, Factory reset

Specification
- Housing: Aluminium
- Dimensions: 132 x 44 x 95 mm
- Weight: 540 g
- Mounting: DIN rail, wall mount, flat surface

Operating Environment
- Temperature: -40 °C to 75 °C
- Humidity: 10%-90%, non-condensing
- Protection class: IP30

Approvals & Regulators
- Approvals: CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark
- EMV: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 301 489-19, Draft EN 301 489-52 - - ESD: EN 61000-4-2
- Interference immunity: EN IEC 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
- Radio: EN 300 328, EN 300 440, EN 301 893, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 303 413
- Safety: CE: EN IEC 62368-1, RCM: AS/NZS 62368.1, CB: IEC 62368-1

Delivery
1x Teltonika RUTX12 Router
1x 24W Power Adapter
4x Mobile Antenna (swivel, SMA male connector)
2x WLAN Antenna (swivel, RP-SMA male connector, 1.5 m cable)
1x GNSS (self-adhesive, SMA male connector, 3 m cable)
1x Bluetooth (magnetic base, RP-SMA male connector, 1.5 m cable)
1x LAN Cable (1.5m)
1x SIM Adapter Kit
1x Quick Start Guide
