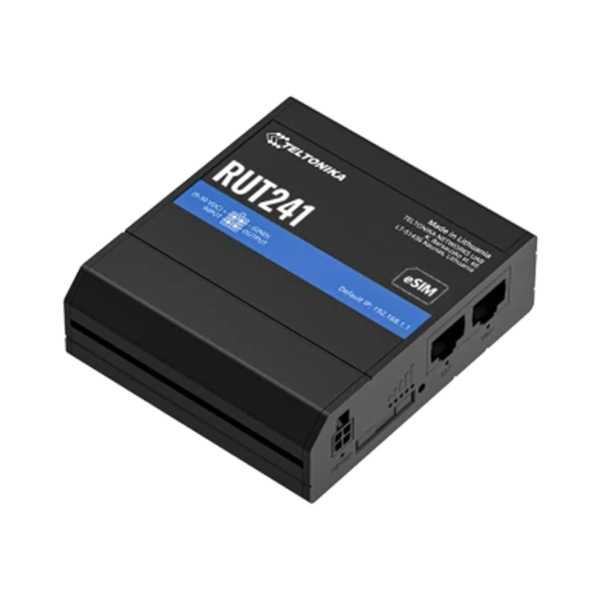

Teltonika RUT241 4G LTE CAT 4 IoT WLAN Industrial eSIM Router (4G/3G/2G, SIM, eSIM, LAN, WAN)

The RUT241 eSIM is an industrial cellular router with LTE Cat 4 and eSIM with SGP.22 pull-based consumer architecture. This compact eSIM router supports one physical SIM card, up to seven eSIM profiles managed via WebUI and RMS, and a Trusted Platform Module (TPM) for increased security. The RUT241 eSIM Router offers uninterrupted connectivity with automatic WAN failover and two Ethernet ports, making it ideal for your M2M and IoT solutions.

Features
- eSIM
- LTE Cat 4
- 4G up to 150 Mbps
- 3G up to 42 Mbps
- 2G up to 236.8 kbps
- WiFi 4 (Access Point -AP)
- WAN & LAN & SIM

Hardware
- Mobile: 4G (LTE) Cat 4 up to 150 Mbps, 3G up to 42 Mbps, 2G up to 236.8 kbps
- CPU: Mediatek, 580 MHz, MIPS 24KEc
- RAM: 128 MB, DDR2
- Storage: 16 MB, SPI Flash
- Power options: 4-pin industrial DC power jack, 9 - 30 VDC
- SIM: 1x SIM slot (Mini SIM 2FF), 1.8 V/3 V, external SIM holder
- eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles
- TPM: Identification and Authentication Module, TPM 2.0 standard
- Antenna connectors: 2x SMA for LTE, 1x RP-SMA for Wi-Fi antenna connectors
- Ethernet: 2 x RJ45 ports, 10/100 Mbps
- Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- Inputs/Outputs: 1x digital input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x digital output, open collector output, max. output 30 V, 300 mA
- Status LEDs: 3x connection type status LEDs, 5x Connection strength LEDs, 2x LAN status LEDs, 1x power LED
- Operating temperature: -40 °C to 75 °C
- Housing: aluminum housing, plastic panels
- Dimensions: (W x H x D) 83 x 25 x 74 mm
- Weight: 130 g

Software
- Operating system: RutOS (OpenWrt-based Linux operating system)
- Mobile functions: eSIM, status, SMS, USSD, blacklist/whitelist, multiple PDN, band management, SIM idle protection service, APN, bridge, passthrough

Delivery*
1x Teltonika RUT241 4G LTE CAT 4 IoT WLAN Industrial eSIM Router
1x 9W Power Adapter
2x Mobile Antennas (swivel, SMA)
1x WiFi Antennas (swivel, RP-SMA)
1x Ethernet Cable (1.5m)
1x SIM Adapter Set
1x Quick Guide

*The delivery contents may vary depending on the standard order code.
