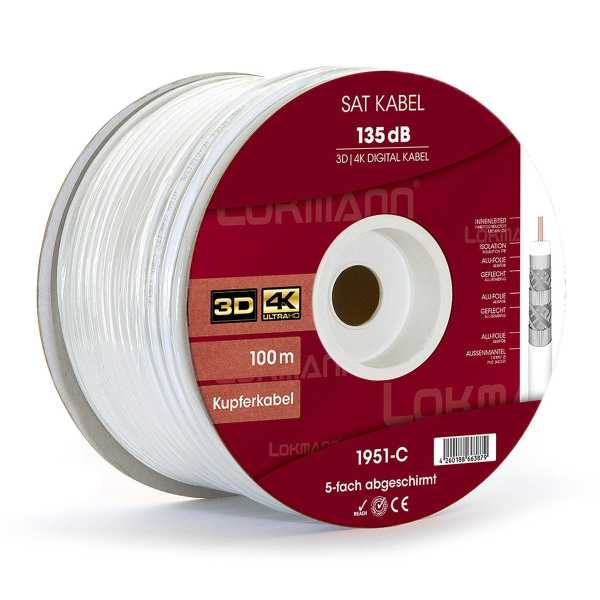

Koax Sat Kabel Lokmann 1951-C 135dB KU (5 Shield, HQ, 7mm, 3D, UDH 4K, Copper Cable, White)

The number of potential sources of interference such as mobile phones is constantly increasing. It is all the more important that cables of all types are optimally shielded. That's why we don't content ourselves with the 75 dB standard screening that is usual today. With the Lokamman cables, it is a whopping 135 dB, which ensures that the received signal arrives at the receiver without loss even over long distances. For digital television enjoyment without interference.

Features
- 3D, UHD 4K
- 5-way shielded
- 135 dB satellite cable

Technical Info
- 100 meters, spool packed
- 5-way shielded
- Inner conductor 1.02mm KU
- Insulation 4.6 mm PE foamed white
- 1st shielding Al/PE foil glued
- 2nd shield wire mesh, Alu-Mg alloy, 16x2x0.12(25%)
- 3. Shield Unglued AI/PE foil
- 4th shield wire mesh, Al-Mg alloy 16x4x0.12 (45%)
- Impedance (10MHz) 75Ù
- Capacitance [pF/m] 55
- Shortening factor [v/c] 0.85
- Outer jacket 7mm PVC (ROHS), white +/-0.2

Matching F connectors: MONSTE084
Matching F compression connectors: MONSTE094

Nominal attenuation @ 20dB/100m
max. tolerance +5% of the nominal damping
- 100MHz 5.75dB
- 200MHz 7.06dB
- 300MHz 8.62dB
- 500MHz 12.05dB
- 800MHz 14.53dB
- 1000MHz 18.48dB
- 1350MHz 21.93dB
- 1750MHz 25.78dB
- 2050MHz 27.40dB

Reflection loss
- VHF, dB >= 20
- UHF, dB >= 20

- Shielding maximum 135 dB
- Meter marking

Abbreviations
- KU - copper
- CCS - StaCopper soft
- PEG - PE-physically foamed
- PVC - Polyvinyl Chloride
- APA - Al/polypropylene/Al

Delivery
1x Coax Satellite Cable: Lokmann 1951-C 135dB KU 5x HQ 7mm, 100m
