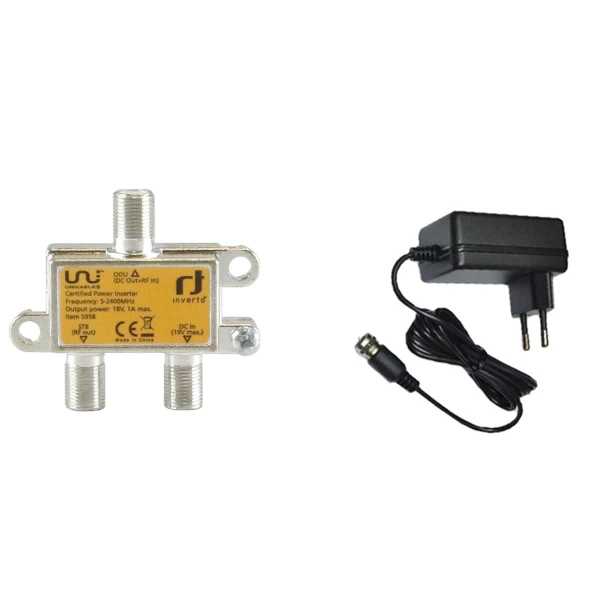

Inverto Unicable II Power Inserter 5-2400MHz incl. Power Supply
This power inserter is designed for the power supply of a Unicable II LNB or a multiswitch output port and the connected Quattro/Wideband LNB, should the connected STB not be able to provide the required power for the LNB/multiswitch output port. A constant DC voltage is made available for the LNB/multi switch output port without loading the STB. The commands of the DiSEqC / EN50494 / EN50607 type are passed through to the LNB/multiswitch output port.
Technical Info - Frequency range 5 - 2400MHz - Voltage input 19V 1A 1x F connector - Input ODU 1x F connector - Output STB 1x F connector - Insertion loss 3dB max. - Input return loss -10dB max. - Output return loss -10dB max. - Maximum current 750mA - Operating temperature -30 ~ + 60 ° C - Weight (Unicable): 34g - Dimensions: 55 x 49 x 15 mm
Delivery 1x Unicable Power Inserter 1x Power Supply 19V 1A
