V943_BMS5012NT_22KHZ

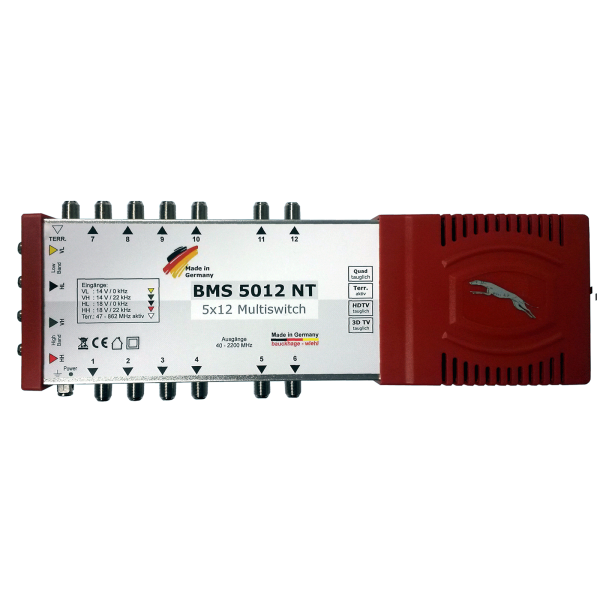

BMS 5012 NT multi switch 5/12 quad capable

-

Only 1 pieces in stock

  • MULBMS-010
  • 4260110720267
For the reception of 4 polarization levels (hor. + Vert. Low band + high band of 1 satellite)... more
For the reception of 4 polarization levels (hor. + Vert. Low band + high band of 1 satellite) and the terrestrial signals for up to 12 satellite receivers. High-power switching power supply (18 V / 400 mA) integrated.



Technical specifications:
Entrance terr .: 1 x 47 - 850 MHz
Input Sat: 4 x 950 - 2200 MHz
Output: 12 x 47 - 2200 MHz
Switching voltage: 14 / 18V, 0 / 22kHz
Branch attenuation Sat: 3 dB +/- 2.5 dB
Branch attenuation terr .: 1 dB +/- 2 dB
Decoupling H / V:> 30 dB
Decoupling Sat / terr .:> 25 dB
Output level: max. 90 dBuV
Current consumption: <65 mA
Remote power supply: max. 400 mA
Dimensions: 325 x 85 x 60 mm



New version with 22 kHz and terrestrially active
Suitable for operation with Quad-LNB!



Made in Germany
