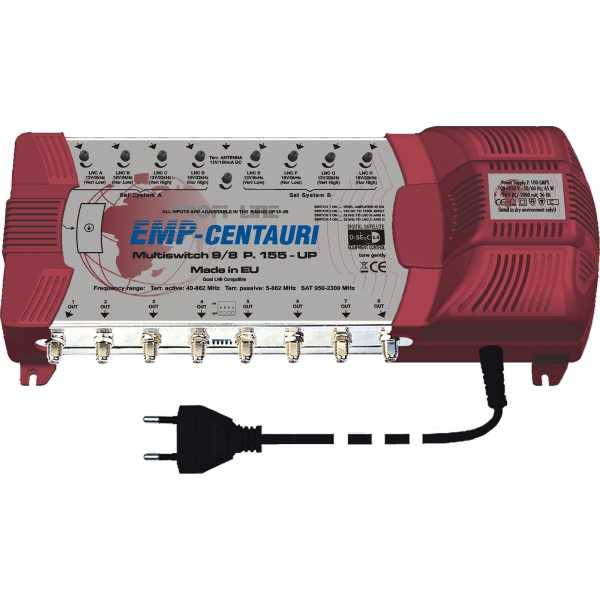

EMP Centauri Profi-Line Multiswitch MS 9/8 PIU-5

ProfiLine Multiswitch MS 9/8-PUI-5 with energy-saving power supply for 8 subscribers and 2 satellites, input for 4 satellite levels, 1 terrestrial input (active / passive), adjustable SAT inputs.



features:
Adjustable SAT inputs You have the option of setting the input signal strength of the LNBs and matching them with each other
QUATTRO and QUAD-LNB (Quattro switch)
Delivery with manual Comprehensive German manual with connection diagrams
Extra POWERNETZTEIL 2000 mA
High-performance power supply: P.100-SMPS provides the simplest and cheapest ("power-emitter") LNB
Automatic switch-off of the LNB voltage
Short circuit protection Power supply protected with extra fuse so that in the event of a short circuit the entire multicast does not break
Protected by optical and acoustic signaling, electronic fuse in the power supply unit
A light-emitting diode in the power supply signals the operational readiness. In the case of a short circuit at the output of the power supply unit, for example, in the case of a short circuit in the lines and F-connectors, the light-emitting diode goes out and an acoustic warning signal sounds. After elimination of the short-circuit, the multi-switch can be reconnected after a short time.



Technical specifications:
EMP Centauri Profi-Line Multi-Switch MS 9/8 PIU-5
Frequency range LNB Inputs: 950-2300MHz
Terrestrial entrance: 5-862MHz
Outputs: 5-2300MHz
Control: DiSEqC 1.0 (2.0) commands
Loss Sat .: 0dB avg
Loss Terrestrial: 16dB avg
Isolation Sat- inputs min .: 20dB
Maximum input signal Sat. / Terr .: 90dBµV / 100dBµV
Maximum output signal Sat .: 90dBµV
Maximum output signal Terr .: 84dBµV
Power consumption of receiver: 50 mA at 18V
Dimensions: L x W x H 347 x 152 x 87mm
Temperature range: -30 ... + 70 ° C



Delivery:
EMP Centauri Profi-Line Multi-Switch MS 9/8 PIU-5
Screws incl. Dowel
