Gibertini Sat Antenna SE Professional Series Dishes Alu

Please choose a variant first

Color:

Size:

  • MONANT163A
  • 4250370104204
The original Gibertini OP SE series is an extremely well-made and constructed brand antenna from... more
The original Gibertini OP SE series is an extremely well-made and constructed brand antenna from the specialized Italian antenna manufacturer GIBERTINI with a high amplification factor! An absolute recommendation from our house! This SE professional series is characterized by a very stable double-frame feed arm, in which the cables can also be routed, and a completely newly designed elevation holder painted in silver, as well as a solid die-cast aluminum LNB holder. In terms of longevity, this antenna sets the bar even higher than you are used to from the high-quality Gibertini L and X series. The extremely stable steel back part in connection with the massive new elevation holder and the new double frame feed arm reduces the susceptibility to gusts of wind to a minimum.

Main features:
- Structure: offset satellite antenna
- Integrated multifeed rail: No
- Multifeed extension possible: Yes
- minimum satellite distance: optional
- Azimuth range multifeed rail: optional

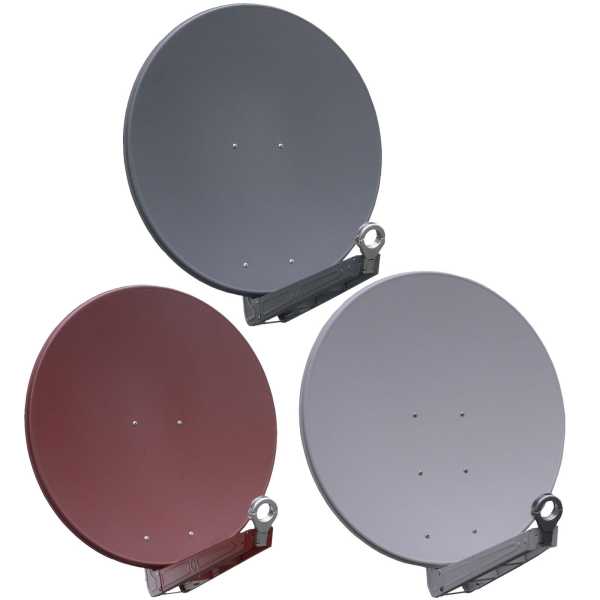

- Aluminum reflectors optionally polyester-coated in the colors anthracite, light gray or brick red
- Brackets sendzimir strip galvanized
- Premium 40 mm feed holder made from vibration-ground die-cast aluminium
- Cable routing in double frame feed arm
- LNB holder included: 1 LNB holder
- LNB holder maximum: 4 LNB holders (MFP 1~4)
- Polyester coating: Yes
- Ground terminal: No

Specifications Gibertini 75SE:
- Reflector dimensions 75.00 x 80.00cm
- Temperature from -30°C to +70°C Humidity 0-100
- Frequency range (Ghz): 10.00 - 13.00
- Efficiency: 69%
- Antenna gain at 10.70 Ghz (dB): 36.70
- Antenna gain at 11.70 Ghz (dB): 37.45
- Antenna gain at 12.75 Ghz (dB): 38.20
- Cross polarization decoupling (dB): 26
- Noise figure @ 30° elevation(K): 42
- F/D radio: 0.66
- Opening angle at 3dB (deg): 2.3
- Mechanical feed mount 40 and 23 mm.
- Elevation setting (deg): 0 - 80°
- Offset angle (deg): 21°
- Pole mount: 30 - 90 mm
- Wind load at 120 km/h: 55 kg

Specifications Gibertini 85SE:
- Frequency range (Ghz): 10.00-13.00
- Reflector dimension: 85 x 90.5cm
- Reflector effective area: 81.5 x 87 cm
- Efficiency*: 69%
- Gain at 10.70 Ghz (dB)*: 37.80
- Gain at 11.70 Ghz (dB)*: 38.50
- Gain at 12.75 Ghz (dB)*: 39.30
- Cross-polarization decoupling on the main (dB)*: 27
- Sidelobe Reduction (dB)*: 25
- Noise temperature at 30 degrees elevation (K)*: 41
- F/D ratio: 0.67
- Opening angle * at -3 dB: 2.1 degrees
- Offset correction angle: 21.1 degrees
- Required feed illumination: 69 degrees
- mechanical feed intake (mm) : 40 / 23 mm
- Elevation adjustment range: 0 - 80 degrees
- Pole mount (mm): 30 - 90
- Reflector thickness (mm): 1.2
- Wind load at 120 km/h (kg): 70
- Operating temperature: -30 to +70 degrees C
- Weight: approx: 8.5 kg
* Values ??at frequency 10.95 GHz and adjusted feed

Specifications Gibertini 100SE:
- Frequency range (Ghz): 10.00-13.00
- Reflector dimension: 97 x 104 cm
- Reflector effective area: 94 x 101 cm
- Efficiency*: 70
- Gain at 10.70 Ghz (dB)*: 39.00
- Gain at 11.70 Ghz (dB)*: 39.70
- Gain at 12.75 Ghz (dB)*: 40.50
- Cross-polarization decoupling on the main (dB)*: 28
- Sidelobe Reduction (dB)*: 24
- Noise temperature at 30 degrees elevation (K)*: 38
- F/D ratio: 0.66
- Opening angle * at -3 dB: 1.70 degrees
- Offset correction angle: 21 degrees
- Required feed illumination: 70 degrees
- mechanical feed mount (mm) : 40 / (23 mm optional)
- Pole mount (mm): 30 - 90
- Reflector thickness (mm): 1.2
- Wind load at 120 km/h (kg): 91 kg
- Operating temperature: -30 to +70 degrees C
- Weight: approx: 10 kg

Delivery:
1x Gibertini satellite antenna OP SE aluminum
including arm, LNB bracket and mounting material
Typ: Parabol
Durchmesser: 75cm, 85cm, 100cm
Material: Alu
Farbe: Anthrazit, Lichtgrau, Ziegelrot
Multifeed: möglich
