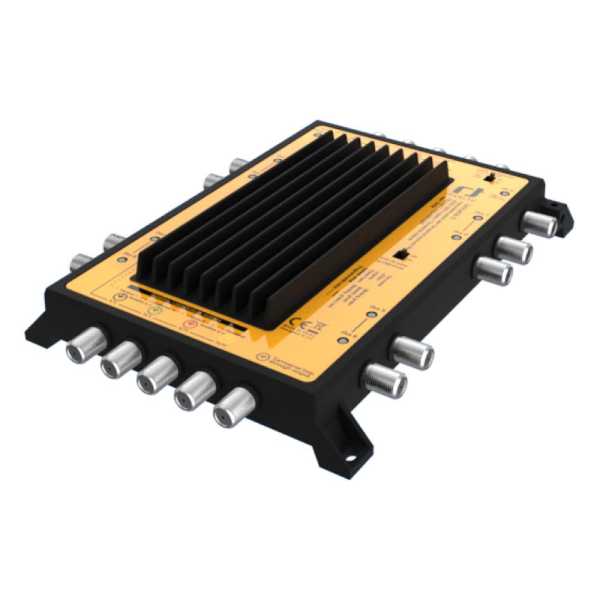

Inverto Unicable II 8xLegacy IDLU-UST110-CUO8O-32P 8x6 cascadable multiswitch
The IDLU-UST110-CUO8O-32P is a compact, cascadable Unicable II multiswitch with 8 outputs, which feature automatic signal recognition and can be operated in Unicable II as well as in legacy mode. The multiswitch can be used with a Quattro LNB (factory default) or two Wideband LNBs to receive 2 satellites. Via the terrestrial input it is possible to feed in a terrestrial antenna signal to receive UHF / VHF / DAB / radio. If desired (on / off switch), the terrestrial signal can also be output via all 8 outputs. When shipped, all outputs operate in legacy mode and can be controlled by either 13 / 18V + 0 / 22kHz or via DiSEqC1.0 / 2.0 commands. The output switches to Unicable mode as soon as it receives an EN50494 or EN50607 signal and then supplies 16 user bands (please refer to the specifications for the frequency table).
A status LED near each output informs about the respective operating mode of this connection. (green = legacy mode, green flashing = UnicableII mode, red / green flashing = diagnostic function)
Optional accessories (sold separately): MDU power supply, can power up to 2 multiswitch + LNB (19V, 3.5A) IDLU-ADPT03-19342-OPP Power Inserter with an External Power Supply (19V, 0.94A) IDLU-PINS02-OOOOO-OPP SatPal Controller Programming Device IDLU-SPAL03-OOOBT-OPP
Technical specifications: inputs: 4 x IF inputs: 1x Quattro LNB (delivery condition) 2x wideband LNBs 1 x UHF / VHF input for terrestrial antennas
outputs: 4 x satellite IF loop-through outputs 1 x terrestrial loop-through output 8 x UnicableII / Legacy connectors with combined terrestrial signal. Delivery state: Legacy mode after switch-on, which switches to Unicable mode after receipt of an EN50494 / EN50607 signal
LNB power supply 500mA max. @ 18VDC DC current consumption 600 ~ 900mA @ 10 ~ 20VDC [max.] Operating temperature - 20 ~ + 50 ° C Protection class IP54 Dimensions 210 x 146 x 37 (H x W x D) mm
* Programmer not included, sold separately as an accessory.
Delivery: 1x Inverto Unicable II IDLU-UST110-CUO8O-32P User Manual
